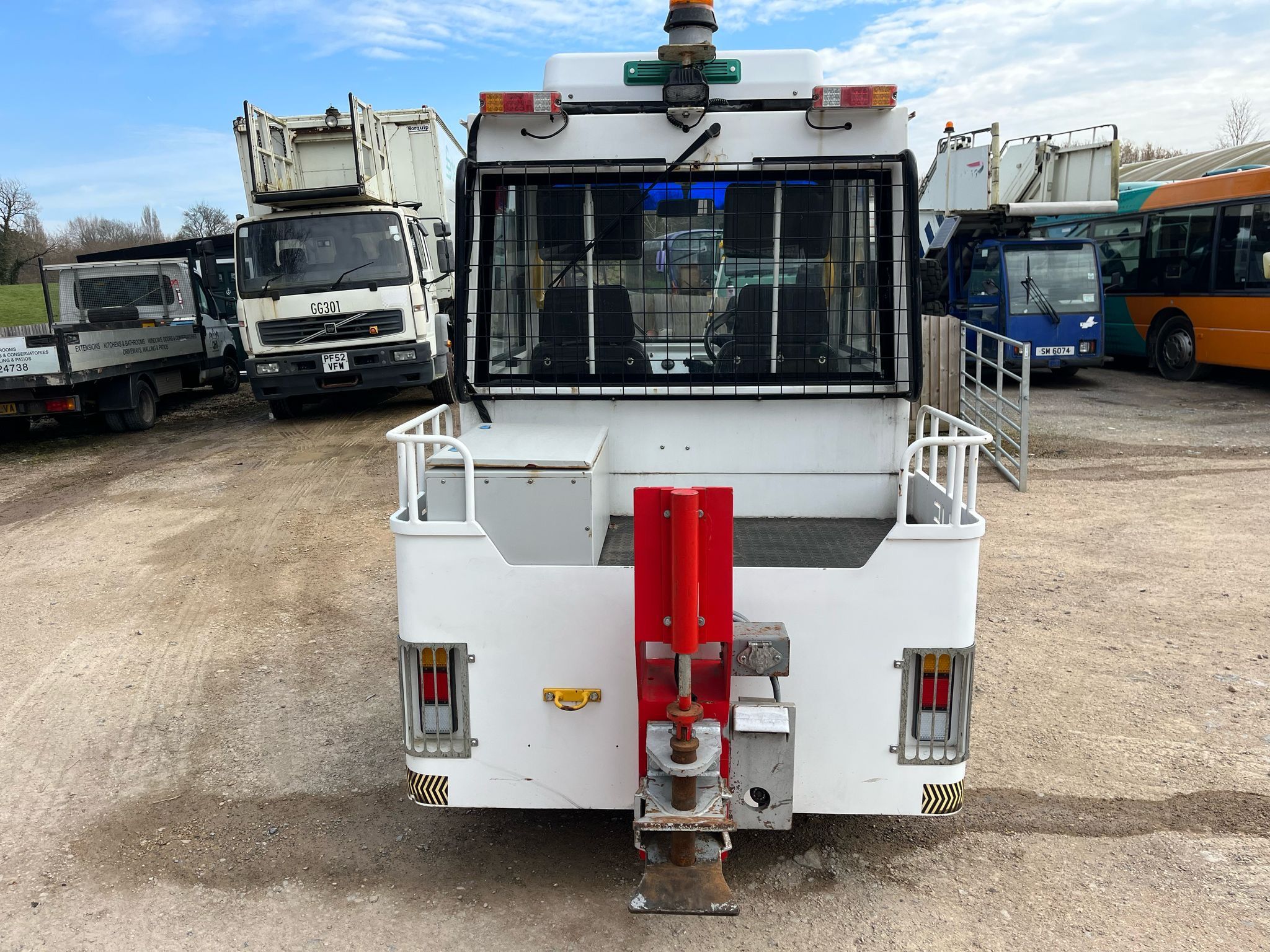

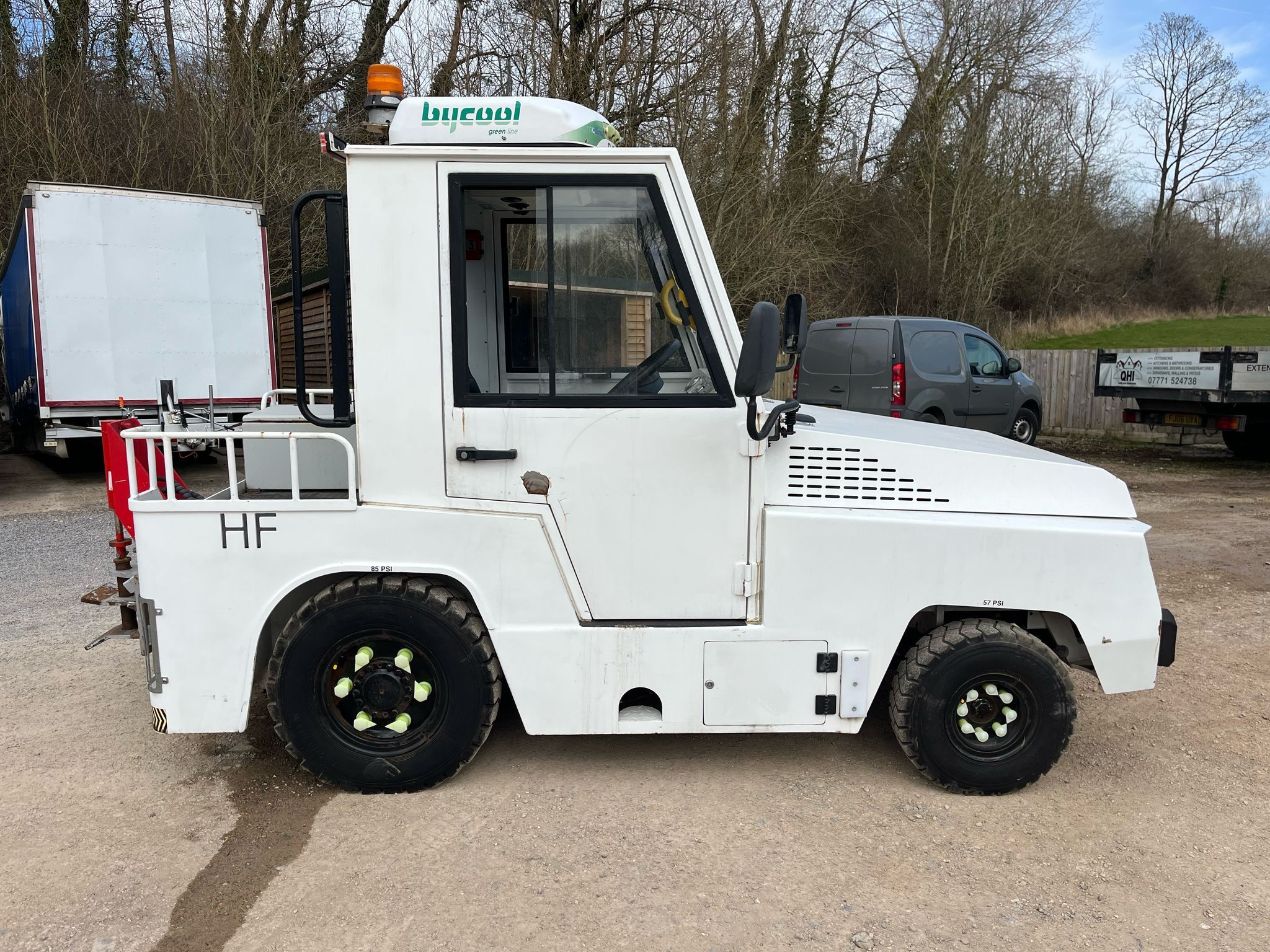

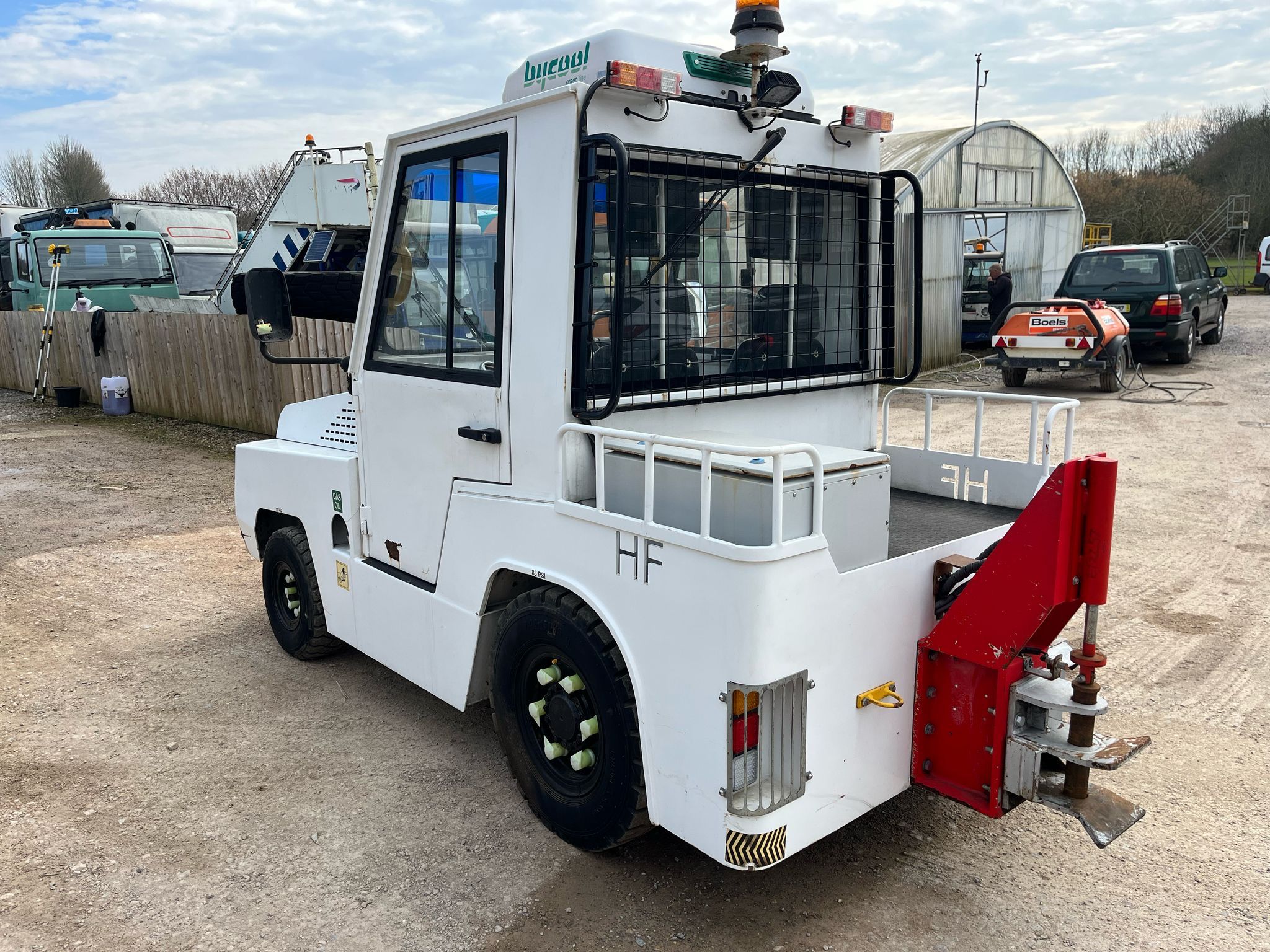

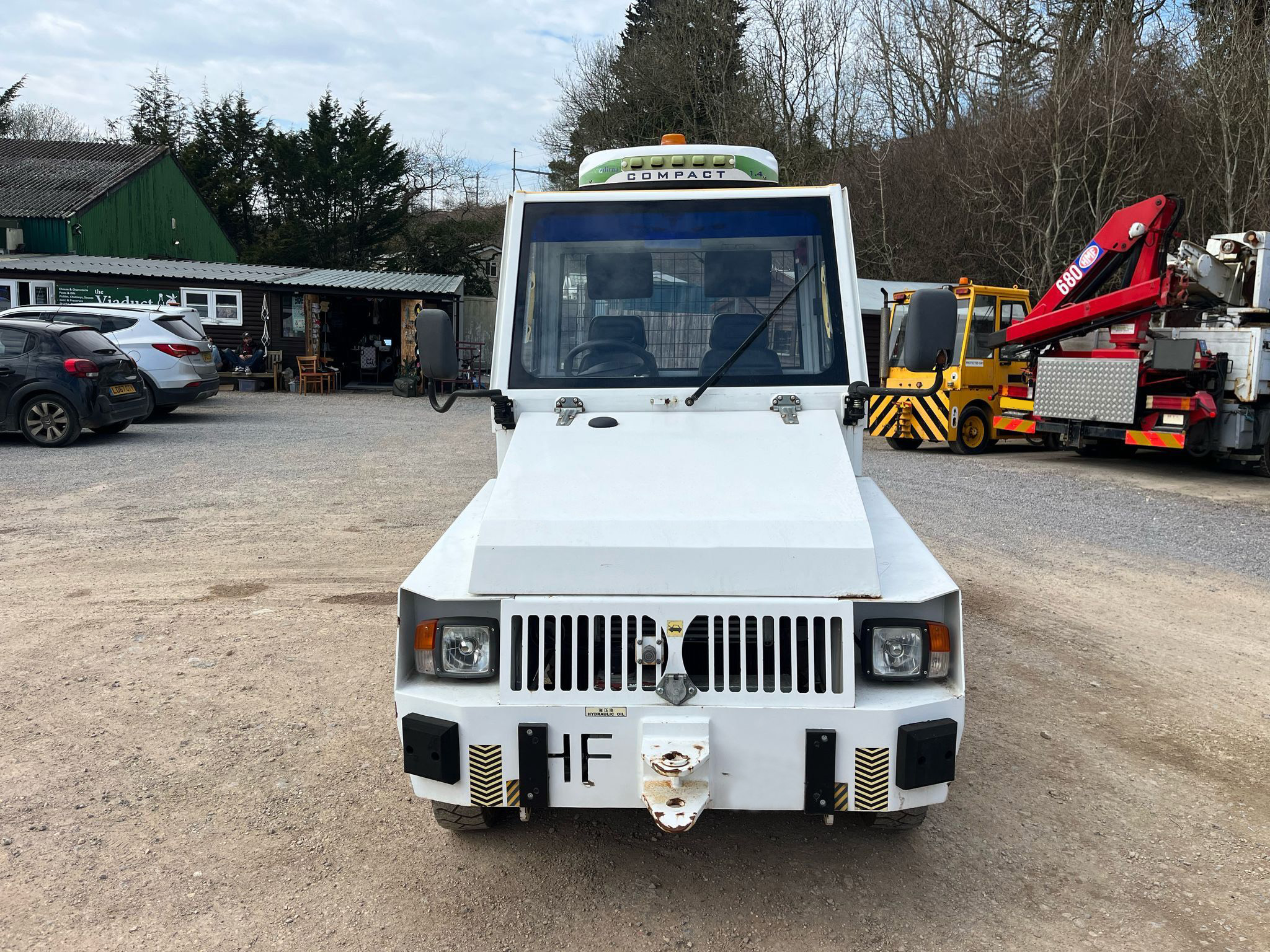

HF5825 Diesel Powered Airport Towing Tractor

The HF5825 diesel towing tractor is a compact yet heavy-duty ground support vehicle designed for routine airport apron operations. It is most commonly used for towing baggage trolleys, cargo dollies, equipment trailers, and in some configurations, light aircraft handling support. Its design prioritises strong low-speed pulling performance, tight manoeuvrability, and durability in continuous airside service.

This model is typically built with a reinforced steel chassis and a purpose-engineered towing layout rather than a modified industrial vehicle frame. As a result, it provides stable traction under load and is well suited to the stop-start towing cycles found in busy terminal and ramp environments.

Typical Performance Characteristics

In standard airport service roles, the HF5825Z is generally rated for medium to heavy trailer towing duties, with towing capacities commonly quoted in the region of:

30 tonnes class (depending on configuration and load conditions)

Specification	Details
Manufacturer	HF
Model	5825
Application	Aircraft Towing Tractor
Year	TBA

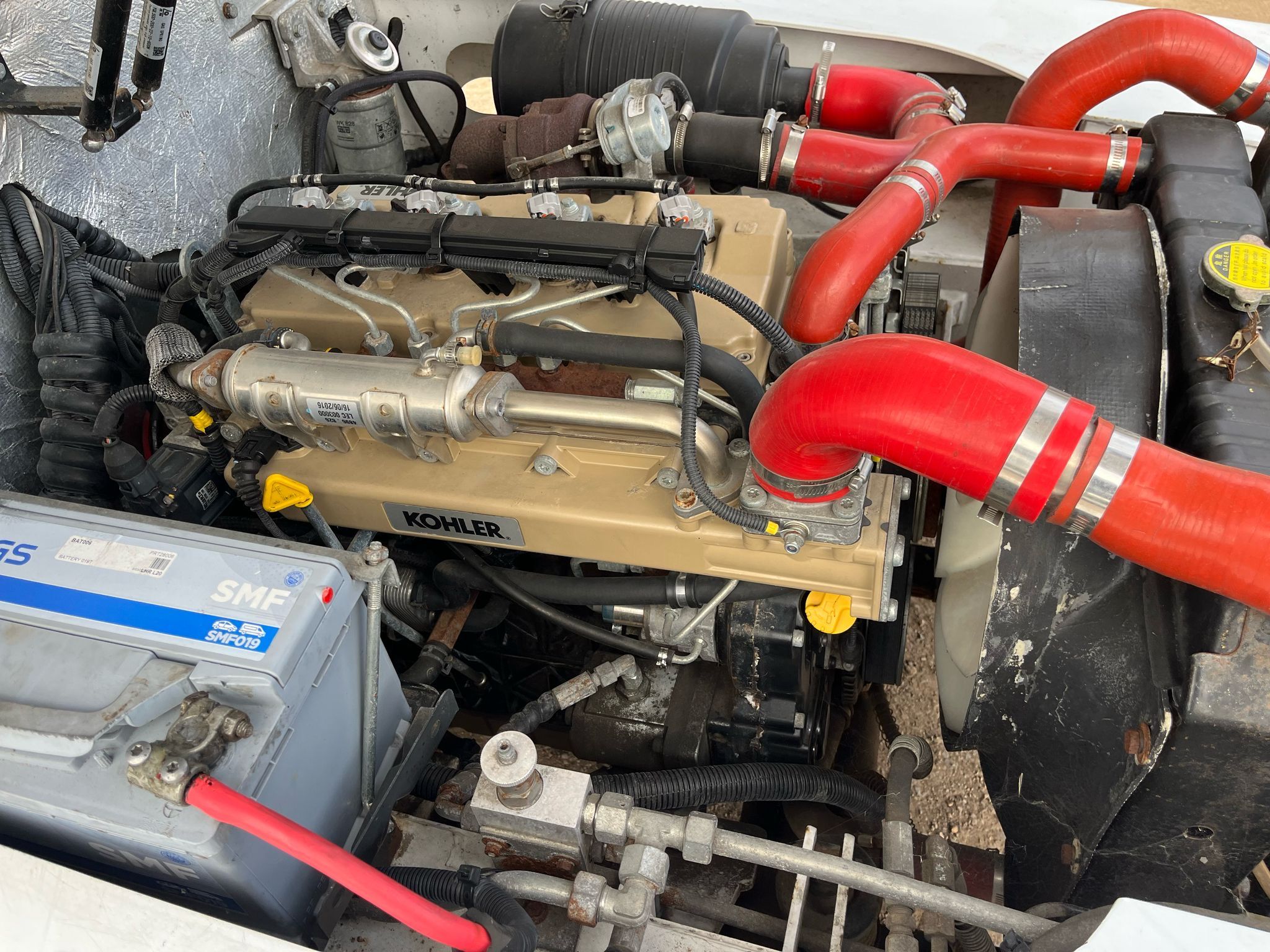

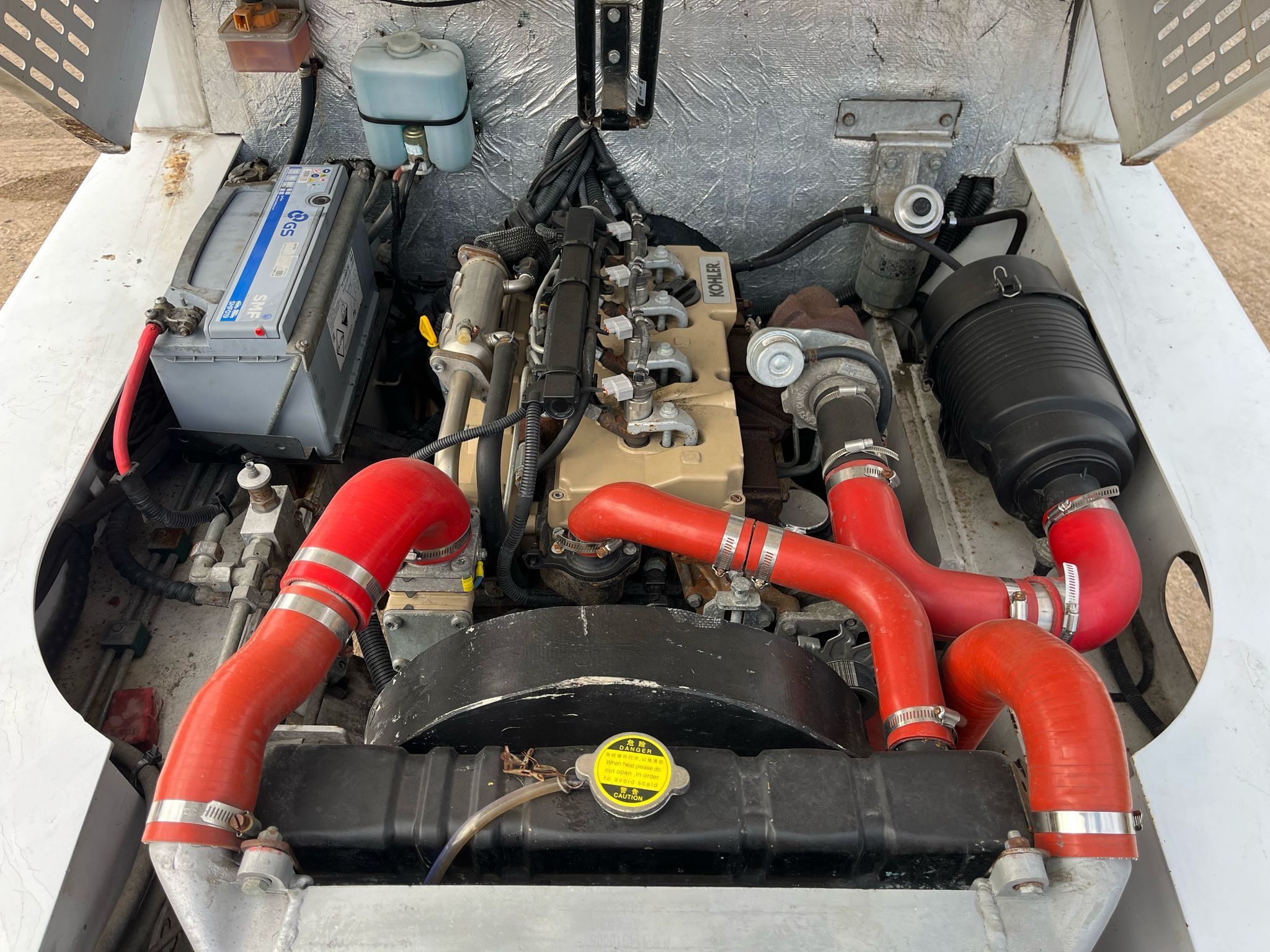

Specification	Performance & Capacity Towing capacity: typically 30,000 kg Drawbar pull: 25 kN Dimensions & Mass Overall length: 3,100 mm (without hitch), 3,415 – 3,570 mm (with hitch) Width: 1,435 – 1,440 mm Height: 1,900 mm Wheelbase: 1,910 mm Weight: approximately 3,100 – 4,730 kg depending on configuration and capacity. Maneuverability Turning radius: 3,500 – 3,800 mm outside, 2,500 mm inside Ground clearance: 100 – 165 mm Technical Features Engine & Powertrain Fuel type: Diesel Engine Type: Kohler 4 Cylinder Diesel Transmission: Automatic Axles & Suspension Front/Rear axles: Spring/leaf suspension; rear axle usually driving type. Braking & Steering Brakes: Front disc and rear drum Steering: Hydraulic power-assisted steering for ease of operation. Tow Equipment & Cab Lighting & electrical Standard lighting package (headlights, tail lights, turn signals) and a 12 V electrical system. Tires & Fuel Tires: Front 650-10, Rear 700-15 Fuel tank: 65 liters.

Why Choose This Airport Ground Equipment?

Selecting proven airport ground equipment ensures safe aircraft operations, reduced downtime, and long-term cost efficiency. This unit represents a reliable solution for modern airport environments worldwide.

We offer equipment either:

• As received from the relevant authority with a workshop check to make sure it operates but no reparatory works (AS IS) or
• Fully prepared including servicing of all major components and a fresh coat of paint (PREPARED)

Worldwide delivery available.

Any item which is military by design or has component parts designed for military use will require an export license to be applied for if being exported from the United Kingdom,
